【Full Color Night Vision】Anpviz 5MP POE IP Security Camera System, 32pcs 5MP Dome PoE IP Cameras Outdoor IP66 Turret Camera, H.265+ 4K 8MP 32CH NVR with 8TB HDD Video Surveillance NVR System for Recording HIK Connect APP White
*5MP resolution 2592*1944 output
*Night Vision 98ft, Motion Alert, IP66
*Full Color Night Vision
NVR:
*Up to 8 Megapixels resolution
*H.265+/H.265/H.264+/H.264/MPEG4 video formats
2. 5MP H.265 Turret POE Full Color Night Vision IP Camera * 32
3. Power Adapter for NVR * 1
4. Mouse * 1
5. User Manual CD * 1
6. 20m Network Cable * 32
7. 8TB HDD * 1

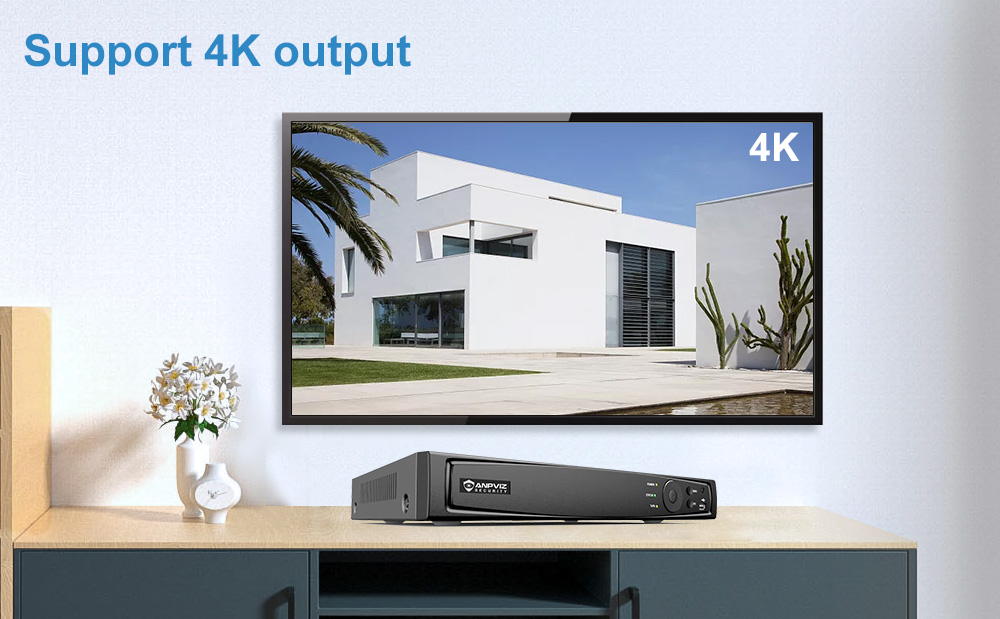

Super HD 8MP 4K High Resolution of NVR
8MP 4K high resolution up to 3840x2160, much clearer than 6MP. HDMI and VGA independent outputs. It provides incredibly bright and in real color, which enables you to see all objects very clearly.

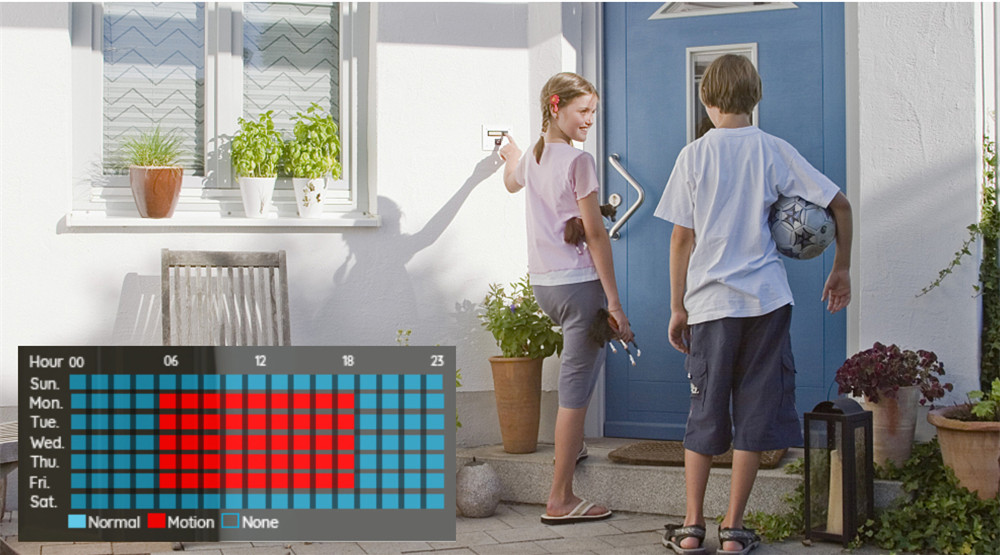

Set Motion Detection Schedule for NVR
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.
Motion Detection-Rich Alerts
When any of the cameras detect motion, the NVR7632K2-16P could buzz to call your attention. It can also send email and push to you and trigger recording. In this way, you could be informed in real time when invasion happens.
H.265+ Compression Efectively Reduces the Storage Space by up to 75%
The H.265+ coding standard enables you to record up to 4 times longer than H.264 with the same HDD,would help you save a lot money in recording cost.
Same Time with Smart Playback
The playback feature of this NVR allows you to know the whole events. 16-channel simultaneous playback. You can quickly search for any event that happened at any time. The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours, or minutes to see the events you missed.
Super HD 5MP High Resolution of Camera
5MP high resolution, much clearer than 1080p and 720p. All cameras provide incredibly bright and in real color, which enables you to see all objects very clearly.
Full-color Night Vision
With LED Lights and improved infrared radiation for 24-hour vigilance, the 5MP cameras ensure a clear color night vision, up to 98ft long distance (depending on the environment).
A real play and plug security! It features POE (Power over Ethernet), with a single cable connecting each IP camera to the NVR for both power supply and video and signal transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners.
One-way Audio Support
This 5MP video surveillance camera has built-in one-way audio function. Pick up the voice around, it is a good function to us.
Weatherproof IP66 Indoor/ Outdoor
The aluminum alloy body and housing make the camera an IP66 weatherproof rating. This Turret outdoor surveillance camera works perfectly outside even in harsh weather conditions.
All-metal Housing
This IP Camera is housed in high grade aluminum, it means that it can better withstand outdoor conditions and violent impacts.
Wide-Angle 2.8mm Lens
Smaller lenses are known as wide-angle lenses, which produce a greater field of view than cameras with a larger lens. They capture a large area, though objects will appear smaller within the camera image.
Remote Viewing, Anytime, from Anywhere
No matter where you are, you can remotely access the NVR to see live streaming and stay connected. Remotely view the NVR via: Hik-Connect, iVMS-4500 and Guarding Vision on your mobile device, iVMS-4200 Client on your computer.
Applied to Multiple Occasions
Widely used for a variety of environments, like home, meeting room, warehouses, shopping mall and so on. The IP security system is very easy to use, it is a best choice for your life.
Free Firmware Update
Free Hikvision firmware update helps your security NVR/Camera keep up with the up-to-date features as well as fixing any bugs or glitches.
Plug & Play, Hikvision Private Protocol
This is original Hikvision OEM NVR, Built in Hikvision private protocol,Plug & Play with Hikvision and Anpviz POE IP Cameras which built in Hikvision protocol, easy connect and setting,No more complicated pairing settings.
| Model | IPC-D352VU-S |
| Camera | |
| Image Sensor | 1/2.8" CMOS sensor |
| Effective Pixels | 2592(H)×1944 (V) |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON) |
| Day/Night | Color |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream:15fps@5MP(2592x1944),25fps@4MP/3MP,30fps@1080P/720P Sub Stream: D1/VGA(640x480)/360P/QVGA@30fps |
| Video Bitrates | 32Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| Built-in Mic | optional |
| OSD Overlay | Title and Time overlay |
| Color Led | |
| Led | 2 pcs 3000K color Led |
| Distance | 20-30 M |
| Lens | |
| Focal length | 2.8 mm F1.0 starlight lens |
| Optional Function | |
| POE ,Audio | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
| Model | NVR7632K2-16P |
| Camera | |
| IP video input | 32-ch |
| Up to 8 MP resolution | |
| Incoming bandwidth | 256 Mbps |
| Outgoing bandwidth | 160 Mbps |
| HDMI output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video output mode | HDMI/VGA independent output |
| CVBS output | N/A |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding format | H.265+/H.265/H.264+/H.264 |
| Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Capability | 2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
| Stream type | Video, Video & Audio |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Network | |
| Remote connection | 128-ch |
| Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200 W |
| Supported standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 2 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| Alarm in/out1 | 4/1 |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| General | |
| Power supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption (without HDD and PoE off) |
≤ 15 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (W × D × H) | 385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Weight (without HDD) | ≤ 3 kg (6.6 lb) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
