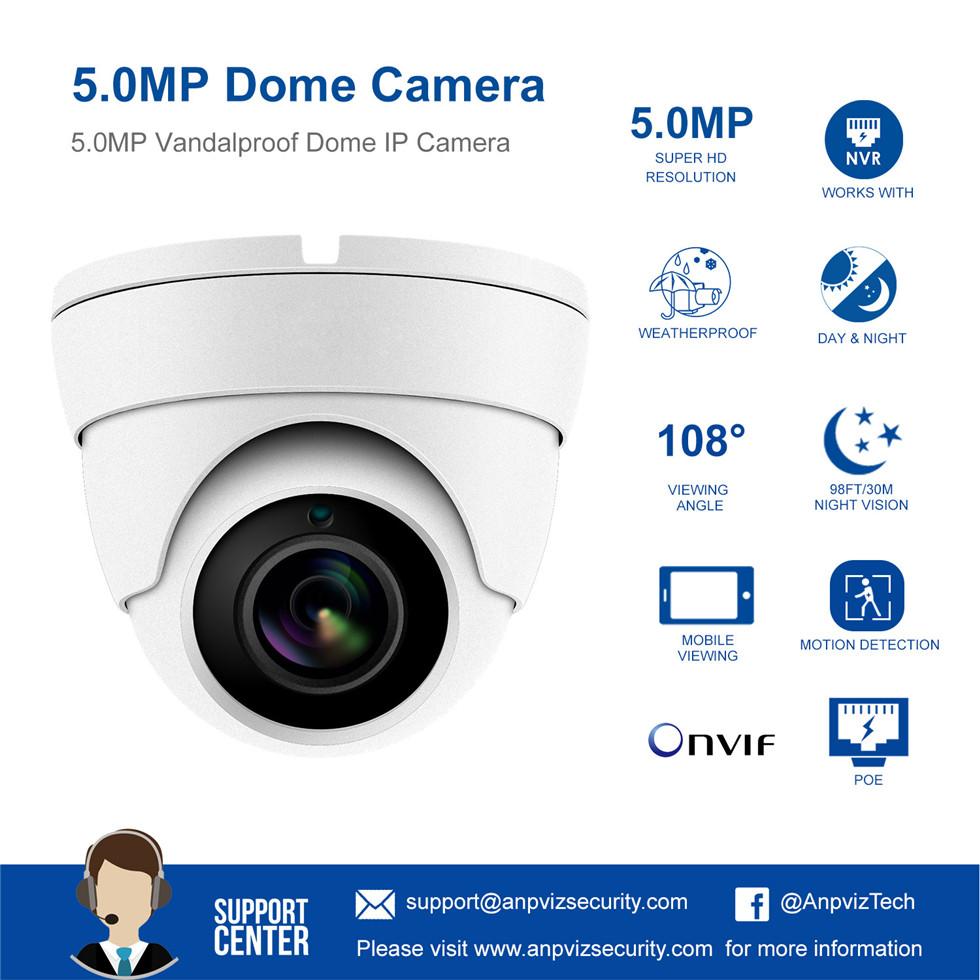

【Audio】Anpviz 5MP H.265 IR Dome IP Camera PoE, IP Security Camera Night Vision 98ft, Motion Alert, Weatherproof IP66 ONVIF(IPC-D3150W-S)
Item No.: IPC-D3150W-S
* 5MP resolution 2592 x 1944 output
* H.265/H.264 dual-stream media server
* Compatible with Hikvision，Dahua， Amcrest， LTS, Laview，GW Security, TVT, Qsee , Swann and other third party
* H.265/H.264 dual-stream media server
* Compatible with Hikvision，Dahua， Amcrest， LTS, Laview，GW Security, TVT, Qsee , Swann and other third party
- Datasheet IPC-D3150GWDownload
- Quick Guide IPC-D3150Download
- Quick User Instruction English 2.0Download
- Uprime Quick User- Germany V1.0Download
Description
Key Features
Specifications
Video Demo
Anpviz 5MP H.265 IR Dome IP Camera PoE, IP Security Camera Night Vision 98ft, Motion Alert, Weatherproof IP66 ONVIF
Key Features and Capabilities:

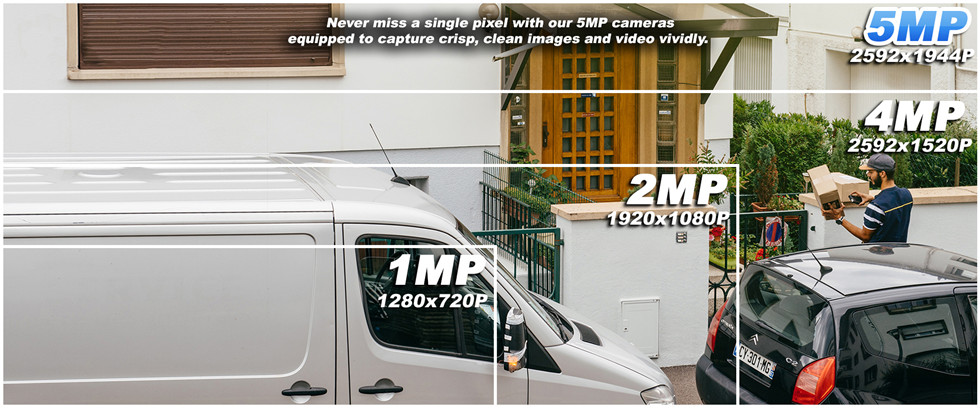

5 Megapixel Resolution – This camera delivers 5.0 Megapixel resolution (2592*1944), providing the level of detail needed for facial recognition and license plate identification. Cover more area and see more detail.

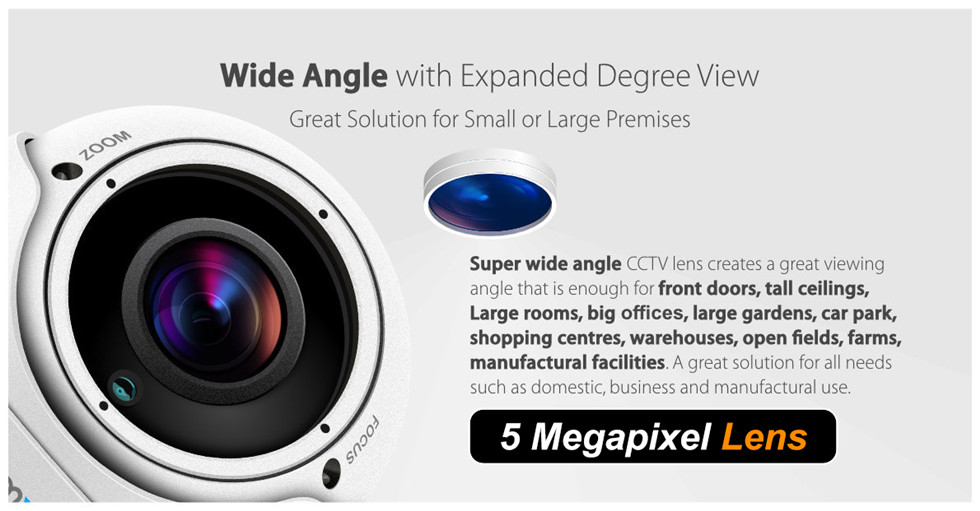

Wide Angle Viewing-The 2.8 mm fixed lens on this camera offers a 108° field of view to cover and protect a wider area.
Power over Ethernet (PoE) – Receive power and data through a single cable. PoE allows IP (internet protocol) devices to receive power and data over existing LAN (local area network) cabling. This eliminates the need to install a separate power cable, simplifies installation, and lowers cabling costs.

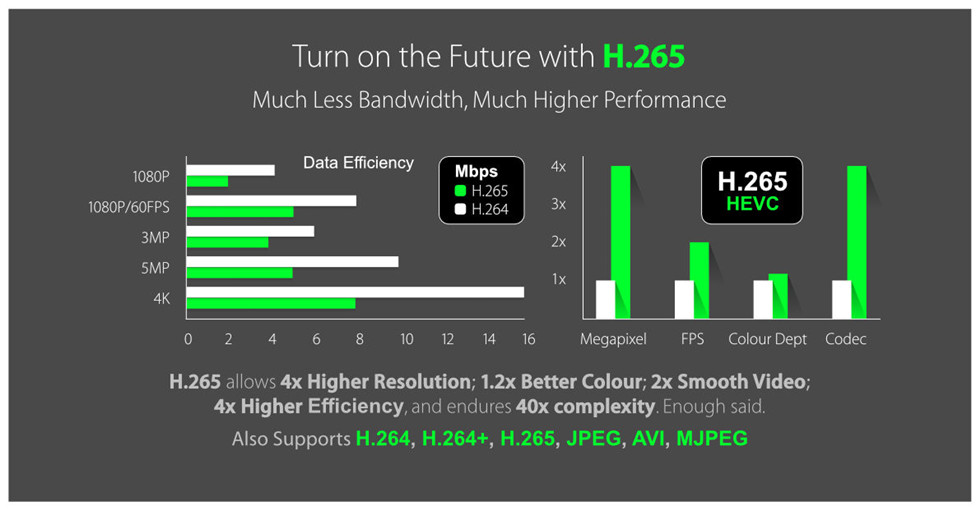

H.265 Compression – The H.265 high-efficiency coding not only reduces bandwidth but also decreases storage requirements, improving overall system performance by up to 40%. H.265 can double surveillance recording duration compared with H.264, and supports up to 7 times the number of video cameras compared with H.264.
Blue Iris, Ispy, Milestone supported, NAS, QNAP,Synology NAS supported. You could work this IP Dome camera with the these software.
Working with NVR: ONVIF Compliance & Hikvision Compatible – Enjoy greater compatibility with more devices. ONVIF defines a common protocol for the exchange of information to allow greater interoperability in multi-vendor network video systems, Like Swann, Qsee, Dahua, Amcrest NVR, Etc. Most important, it is Hikvision Compatible, plug and play with Hikvision NVR; Easy set up.
Outdoor/ Indoor IP66 Weatherproof- This dome security camera is designed to withstand extreme temperatures and protected from dust and rain with an IP66 enclosure that has operating temperatures at-20°C to 60°C (-4°F to 140°F)
3D Digital Noise Reduction (3D-DNR) – Get exceptional video image quality with less noise. 3D-DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions.
True Day/Night (ICR) – Enjoy around-the-clock surveillance. Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. An IR cut filter blocks out infrared light to produce true-to-life color images during the daytime.
Flexible mounting for installation- This Dome Camera Support ceiling mount, wall mount, easy for the installation enviroment.
Bullet Points:
【5.0MP HD Resolution】: Elivers 5 Megapixels (2592 x 1944), providing the level of detail needed for facial recognition and license plate identification.
【H.265 Compression and Power over Ethernet (PoE), Plug and Play with POE NVR】With H.265 compression, you can store more information using fewer hard drives, which allows you to do more with less, and dramatically reduce file sizes with this latest video compression format. PoE allows IP (internet protocol) devices to receive power and data over existing LAN (local area network) cabling. This eliminates the need to install a separate power cable, simplifies installation, and lowers cabling costs.
【Easy Plug and Play with NVRS & Works with Thrid software, ISpy, BlueIris, Milestone, Etc】：Work with Anpviz PoE NVR, and can be added; for the most ONVIF 5MP PoE NVRs of Laview, LTS, Hikvision, EZVIZ and GW, it can be plug and play; for the ONVIF 5MP PoE NVR of Amcrest, Dahua, it can be added after enabled DHCP; Works on ISpy, Blueiris, Milestone, software. Works with NAS.Easy view on Web browser like IE, Firefox, Google Chrome.
【IP66 Weather Rated Enclosure and 2.8mm Wide angle lens】:Ideal for outdoor applications. With a wide range in operating temperatures, it is designed to withstand extreme temperatures and protected from dust and rain.The 2.8 mm fixed lens on this camera offers an impressive 108° field of view to cover and protect a wider area, using fewer devices for a large area.
【100% Satisfaction Guaranteed】: This dome PoE security camera is made with extreme care to provide you best result so that you won’t lose any valuable video. The cutting-edge tech is used in it and hence we offer a 100% satisfaction guarantee! In case of any issue, just contact us and we will resolve your problem，7-24 Hours Online Tech Support: support@ anpvizsecurity.com
5 Megapixel Resolution – This camera delivers 5.0 Megapixel resolution (2592*1944), providing the level of detail needed for facial recognition and license plate identification. Cover more area and see more detail.
Wide Angle Viewing-The 2.8 mm fixed lens on this camera offers a 108° field of view to cover and protect a wider area.
Power over Ethernet (PoE) – Receive power and data through a single cable. PoE allows IP (internet protocol) devices to receive power and data over existing LAN (local area network) cabling. This eliminates the need to install a separate power cable, simplifies installation, and lowers cabling costs.
H.265 Compression – The H.265 high-efficiency coding not only reduces bandwidth but also decreases storage requirements, improving overall system performance by up to 40%. H.265 can double surveillance recording duration compared with H.264, and supports up to 7 times the number of video cameras compared with H.264.
Blue Iris, Ispy, Milestone supported, NAS, QNAP,Synology NAS supported. You could work this IP Dome camera with the these software.
Working with NVR: ONVIF Compliance & Hikvision Compatible – Enjoy greater compatibility with more devices. ONVIF defines a common protocol for the exchange of information to allow greater interoperability in multi-vendor network video systems, Like Swann, Qsee, Dahua, Amcrest NVR, Etc. Most important, it is Hikvision Compatible, plug and play with Hikvision NVR; Easy set up.
Outdoor/ Indoor IP66 Weatherproof- This dome security camera is designed to withstand extreme temperatures and protected from dust and rain with an IP66 enclosure that has operating temperatures at-20°C to 60°C (-4°F to 140°F)
3D Digital Noise Reduction (3D-DNR) – Get exceptional video image quality with less noise. 3D-DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions.
True Day/Night (ICR) – Enjoy around-the-clock surveillance. Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. An IR cut filter blocks out infrared light to produce true-to-life color images during the daytime.
Flexible mounting for installation- This Dome Camera Support ceiling mount, wall mount, easy for the installation enviroment.
Bullet Points:
【5.0MP HD Resolution】: Elivers 5 Megapixels (2592 x 1944), providing the level of detail needed for facial recognition and license plate identification.
【H.265 Compression and Power over Ethernet (PoE), Plug and Play with POE NVR】With H.265 compression, you can store more information using fewer hard drives, which allows you to do more with less, and dramatically reduce file sizes with this latest video compression format. PoE allows IP (internet protocol) devices to receive power and data over existing LAN (local area network) cabling. This eliminates the need to install a separate power cable, simplifies installation, and lowers cabling costs.
【Easy Plug and Play with NVRS & Works with Thrid software, ISpy, BlueIris, Milestone, Etc】：Work with Anpviz PoE NVR, and can be added; for the most ONVIF 5MP PoE NVRs of Laview, LTS, Hikvision, EZVIZ and GW, it can be plug and play; for the ONVIF 5MP PoE NVR of Amcrest, Dahua, it can be added after enabled DHCP; Works on ISpy, Blueiris, Milestone, software. Works with NAS.Easy view on Web browser like IE, Firefox, Google Chrome.
【IP66 Weather Rated Enclosure and 2.8mm Wide angle lens】:Ideal for outdoor applications. With a wide range in operating temperatures, it is designed to withstand extreme temperatures and protected from dust and rain.The 2.8 mm fixed lens on this camera offers an impressive 108° field of view to cover and protect a wider area, using fewer devices for a large area.
【100% Satisfaction Guaranteed】: This dome PoE security camera is made with extreme care to provide you best result so that you won’t lose any valuable video. The cutting-edge tech is used in it and hence we offer a 100% satisfaction guarantee! In case of any issue, just contact us and we will resolve your problem，7-24 Hours Online Tech Support: support@ anpvizsecurity.com
| Model | IPC-D3150W |
| Camera | |
| Effective Pixels | 5 megapixels |
| Electronic Shutter | AUTO |
| Min. Illumination | 0.1Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| BLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: 15fps@5MP(2592x1944),20fps@4MP(2592x1520),25fps@3MP/1080P/720P Sub stream: VGA/360P@25fps, etc. |
| Video Bitrates | 32Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| Built-in Mic | Yes |
| OSD Overlay | Title and Time overlay |
| IR Led | |
| IR Led | 18pcs IR Leds |
| IR Distance | 20-30 M |
| Lens | |
| Focal length | 2.8 mm fixed/VF/AF lens |
| Optional Function | |
| POE, Audio, etc. | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
| P2P | Yes |
| Web | IE , Firefox 32bit ESR, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 5 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
