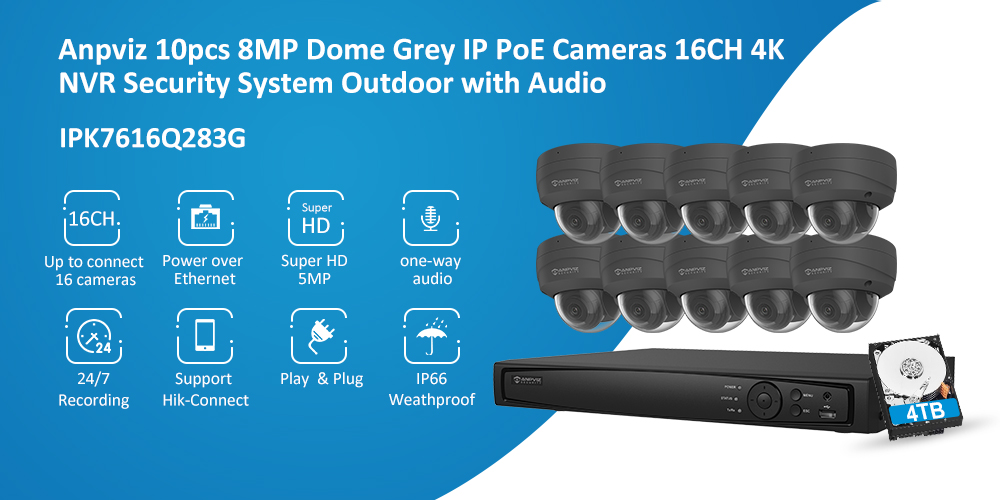

Anpviz 8MP IP POE Security Camera System, 16CH H.265 NVR with 4TB HDD And 10pcs 8MP Outdoor IP POE Turret Cameras Home Security System with Audio Recording, Waterproof, 98ft Night Vision, HIK Connect APP,10 Cameras Systems
Anpviz Security Technology Ltd
Monday~Sunday
8:00am-6:00pm
4F, Block 7 Lijincheng High Tech Garden, Longhua District,Shenzhen China
Anpviz 8MP IP POE Security Camera System, 16CH H.265 NVR with 4TB HDD And 10pcs 8MP Outdoor IP POE Turret Cameras Home Security System with Audio Recording, Waterproof, 98ft Night Vision, HIK Connect APP
  • Anpviz 8MP IP POE Security Camera System, 16CH H.265 NVR with 4TB HDD And 10pcs 8MP Outdoor IP POE Turret Cameras Home Security System with Audio Recording, Waterproof, 98ft Night Vision, HIK Connect APP

Anpviz 8MP IP POE Security Camera System, 16CH H.265 NVR with 4TB HDD And 10pcs 8MP Outdoor IP POE Turret Cameras Home Security System with Audio Recording, Waterproof, 98ft Night Vision, HIK Connect APP

Item No.: IPK7616Q283G-10
* 8MP resolution 3840 x 2160 output
* H.265/H.264 dual-stream media server
* Night Vision 98ft, Audio, IP66
NVR:
* Up to 8 Megapixels resolution recording
* H.265+/H.265/H.264+/H.264/MPEG4 video
INQUIRY
Description Specifications

1. 16CH 4K 8MP H.265+ POE NVR * 1
2. 8MP H.265 Dome POE IP Camera * 10
3. Power Adapter for NVR * 1
4. Mouse * 1
5. User Manual CD * 1
6. 20m Network Cable * 10
7. 4TB HDD * 1









Super HD 8MP 4K High Resolution of NVR


The NVR supports up to 8MP video input and HDMI output. You can choose a high-resolution camera and configure it to make the video picture clearer.





Set Motion Detection Schedule for NVR


The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.



Advanced H.265 Compression Technology



       The advanced H.265 compression technology is adopted to achieve ultra-low bit rate and high-definition image quality. Compared with H.264, it saves 30% bit rate, and has better support function for network transmission. It not only saves memory, but also improves image quality and transmission speed.


24/7 Reliable Recording

If you have many security cameras or if you want 24/7 reliable recording, Anpviz NVR can be your best
choice.The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.



Same Time with Smart Playback


The playback feature of this NVR allows you to know the whole events. 8-channel simultaneous playback. You can quickly search for any event that happened at any time. The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours, or minutes to see the events you missed.






Crystal Viewing in True 8MP HD

This camera provide a crystal clear 8MP Full HD picture of your home, anywhere, anytime.








IP66 Waterproof Indoor/Outdoor


This Anpviz security camera, with all metal body, can not only effectively prevent rainwater from entering the camera, prolong its working life, but also resist all bad weather conditions, so that it can work outside normally and efficiently without missing every important moment.





Smart Motion Detection

If someone enters the room illegally and enters the camera shooting range, the alarm information will be sent to the user's mobile phone. In this way, the user can know everything happened at home in time, and quickly make alarm decisions to protect family safety.



Wider Angle, Wider View


The 2.8mm lens means that the monitoring angle is larger, so that you can see a wider view of the monitoring image.






Widely Used in Many Places


This camera possesses waterproof, dust-proof, high temperature resistant, cold resistant and other multiple performance, so you can choose to use in every corner of the outdoor and indoor.









Plug & Play, Hikvision Private protocol

This is original Hikvision OEM NVR, Built in Hikvision private protocol,Plug & Play with Hikvision and Anpviz POE IP Cameraswhich
built in Hikvision protocol,easy connect and setting,No more complicated pairing Settings.













Model NVR7616Q2-16P
Camera
IP video input 16-ch
  Up to 8 MP resolution
Incoming bandwidth 160 Mbps
Outgoing bandwidth 160 Mbps
HDMI output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz,
1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video output mode HDMI/VGA simultaneous output
CVBS output N/A
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding format H.265+/H.265/H.264+/H.264
Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream type Video, Video & Audio
Audio compression G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connection 64
Network protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,
ISUP, UPnP™, HTTP, HTTPS
Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power 150 W
Supported standard IEEE 802.3 af/at
Auxiliary Interface
SATA 2 SATA interfaces
Capacity Up to 8 TB capacity for each disk
USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power supply 100 to 240 VAC, 50 to 60 Hz
Consumption
(without HDD and PoE off)
≤ 15 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
Weight (without HDD) 2.6 kg (5.7 lb)
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
