Anpviz 8MP IP PoE Camera Security System, 8MP Turret POE IP Camera 6pcs IP66 Outdoor, H.265+ 4K 8MP 8CH NVR with 2TB HDD Video Surveillance Network Vedio Recorder System for Recording Plug&Play Hik Connect APP
  • Anpviz 8MP IP PoE Camera Security System, 8MP Turret POE IP Camera 6pcs IP66 Outdoor, H.265+ 4K 8MP 8CH NVR with 2TB HDD Video Surveillance Network Vedio Recorder System for Recording Plug&Play Hik Connect APP
  • Anpviz 8MP IP PoE Camera Security System, 8MP Turret POE IP Camera 6pcs IP66 Outdoor, H.265+ 4K 8MP 8CH NVR with 2TB HDD Video Surveillance Network Vedio Recorder System for Recording Plug&Play Hik Connect APP
  • Anpviz 8MP IP PoE Camera Security System, 8MP Turret POE IP Camera 6pcs IP66 Outdoor, H.265+ 4K 8MP 8CH NVR with 2TB HDD Video Surveillance Network Vedio Recorder System for Recording Plug&Play Hik Connect APP
  • Anpviz 8MP IP PoE Camera Security System, 8MP Turret POE IP Camera 6pcs IP66 Outdoor, H.265+ 4K 8MP 8CH NVR with 2TB HDD Video Surveillance Network Vedio Recorder System for Recording Plug&Play Hik Connect APP

Anpviz 8MP IP PoE Camera Security System, 8MP Turret POE IP Camera 6pcs IP66 Outdoor, H.265+ 4K 8MP 8CH NVR with 2TB HDD Video Surveillance Network Vedio Recorder System for Recording Plug&Play Hik Connect APP

Item No.: IPK7608Q380W-6
Camera:
*8MP resolution output
*Night Vision 98ft, Motion Detection Alert, IP66
NVR:
*Up to 8 Megapixels resolution
*H.265+/H.265/H.264+/H.264/MPEG4 video formats
INQUIRY
Description Specifications Specifications

1. 8CH 4K 8MP H.265+ POE NVR * 1
2. 8MP H.265 Turret POE IP Camera * 6
3. Power adapter for NVR * 1
4. Mouse * 1
5. User Manual CD * 1
6. 20m Network Cable * 6
7. 2TB HDD * 1





Super HD 8MP 4K High Resolution of NVR

8MP 4K high resolution up to 3840x2160, much clearer than 6MP. HDMI and VGA independent outputs. It provides incredibly bright and in real color, which enables you to see all objects very clearly.












Set Motion Detection Schedule for NVR

The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.






Motion Detection-Rich Alerts

When any of the cameras detect motion, the NVR7608Q1-8P could buzz to call your attention. It can also send email and push to you and trigger recording. In this way, you could be informed in real time when invasion happens.






H.265+ Compression Efectively Reduces the Storage Space by up to 75%

The H.265+ coding standard enables you to record up to 4 times longer than H.264 with the same HDD,would help you save a lot money in recording cost.






Same Time with Smart Playback

The playback feature of this NVR allows you to know the whole events. 8-channel simultaneous playback. You can quickly search for any event that happened at any time. The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours, or minutes to see the events you missed.





Super HD 8MP High Resolution of Camera

8MP high resolution, much clearer than 1080p and 720p. All cameras provide incredibly bright and in real color, which enables you to see all objects very clearly.




POE-Easy Setup, Even for a Beginner

A real play and plug security! It features POE (Power over Ethernet), with a single cable connecting each IP camera to the NVR for both power supply and video and single transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners.






One-way Audio Support

This 8MP video surveillance camera has built-in one-way audio function. Pick up the voice around, it is a good function to us.





High Quality Night Vision

With LED Lights and improved infrared radiation for 24-hour vigilance, the 8MP cameras ensure a clear night vision, up to 98ft long distance (depending on the environment).

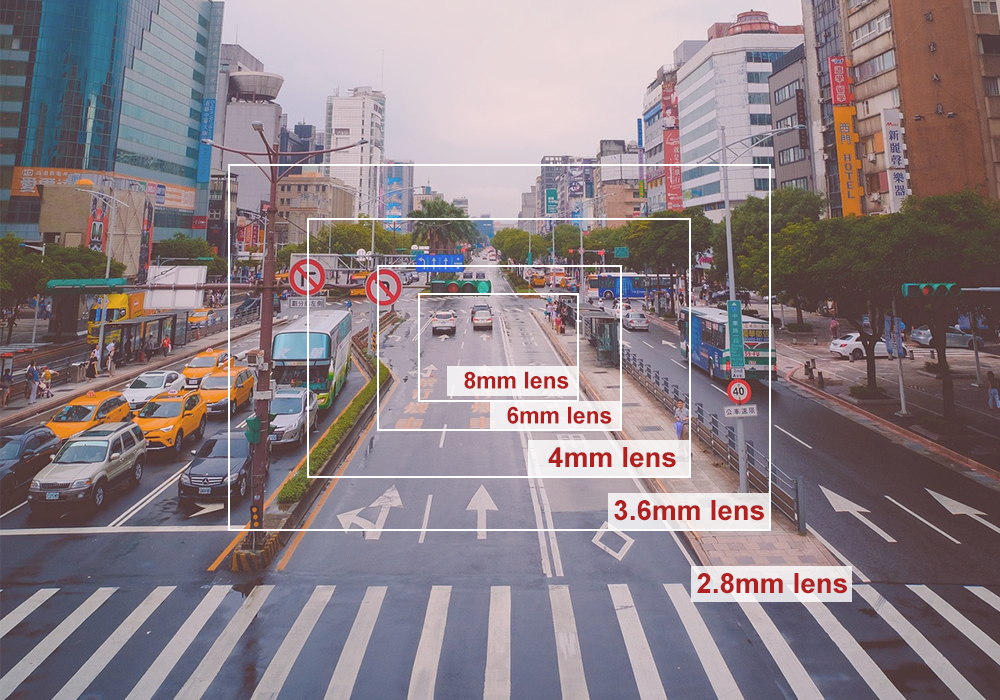

Wide-Angle 2.8mm Lens

Smaller lenses are known as wide-angle lenses, which produce a greater field of view than cameras with a larger lens. They capture a large area, though objects will appear smaller within the camera image.

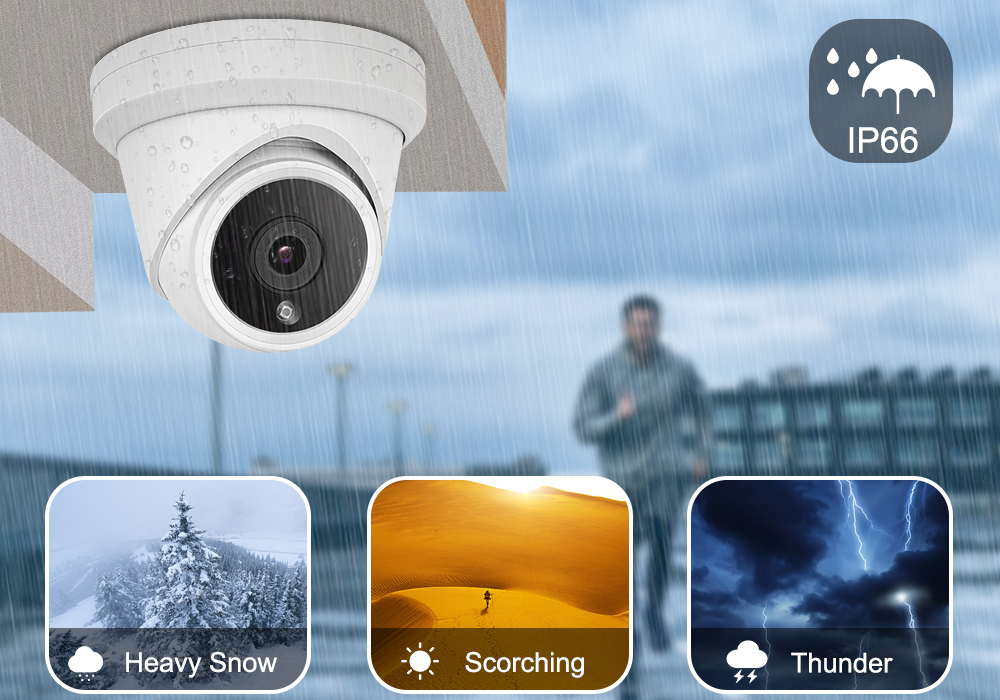

Waterproof IP66 Indoor/ Outdoor

The aluminum alloy body and housing make the IP camera an IP66 waterproof rating. This turret outdoor surveillance camera works perfectly outside even in harsh weather conditions.

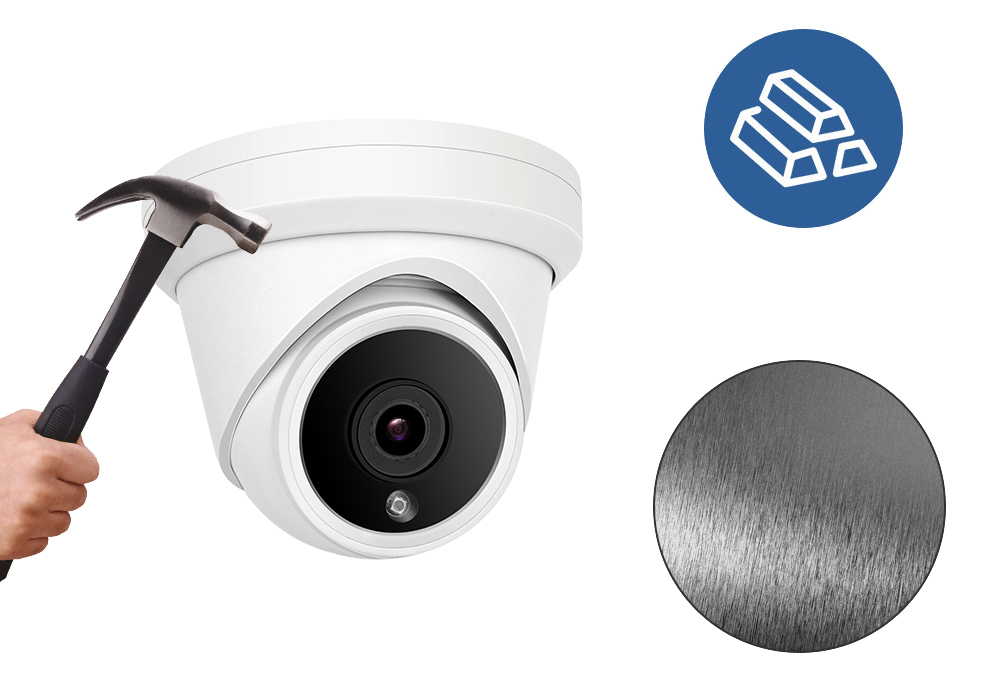

All-metal Housing

This IP Camera is housed in high grade aluminum, it means that it can better withstand outdoor conditions and violent impacts.





WDR -Wide Dynamic Range

In conditions with very bright and dark areas, such as at an entrance door in an office building or an entrance way to an indoor parking garage or tunnel, a camera may capture over-exposed images in bright areas and under-exposed images in dark areas, which greatly affects image quality. A camera with WDR can help solve this issue. By combining images with short exposure  and long exposure into one image, WDR technology captures both bright areas and dark areas clearly.






DNR-Digital Noise Reduction

The camera built in Digital Noise Reduction technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess, your camera provides a cleaner, more accurate image with better clarity, sharpness, and improved motion detection, enhancing your HD experience even in the dark!




Remote Viewing, Anytime, from Anywhere

No matter where you are, you can remotely access the NVR to see live streaming and stay connected. Remotely view the NVR via: Hik-Connect, iVMS-4500 and GuardingVision on your mobile device, iVMS-4200 Client on your computer.





Applied to Multiple Occasions

Widely used for a variety of environments, like home, meeting room, warehouses, shopping mall and so on. The IP security system is very easy to use, it is a best choice for your life.






Plug & Play, Hikvision Client iVMS-4200 Supported

This is original Hikvision OEM NVR, Plug & Play with Hikvision and Anpviz POE IP Cameras - Hikvision Client iVMS-4200 and Mobile APP Hik-Connect, iVMS-4500 and GuardingVision supported.





Free Firmware Update

Free Hikvision firmware update helps your security NVR/Camera keep up with the up-to-date features as well as fixing any bugs or glitches.

Model IPC-D380W-S
Camera
Image Sensor 1/2.8" Sony CMOS
Effective Pixels 8 megapixels
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Manual
BLC /HLC Support
DNR 2D/3D DNR
Other AGC,Motion Detection,Privacy Mask,Flip,Rotate,RIO,OSD overlay
Encode
Video Standard H.264/H.265
Video Resolution MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.
Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.
Video Bitrates  512Kbps - 12Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a
Built-in Mic Yes
OSD Overlay  Title and Time overlay
IR Led
IR Led 18 pcs SMD IR Leds
IR Distance 20-30 M
Lens
Focal length 2.8/3.6 mm fixed lens
Optional Function
PoE
Network Services
Protocol HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.
P2P Yes
Web IE , Firefox (32bit esr), etc.
Media CMS, Android, IOS
ONVIF 17.06 compatible
General
Network Port 1-RJ45, 100Mbps, POE optional
Power Supply 12 VDC ± 10%
Power Consumption < 8 W
Operating Temp. -30-(+60), 10%-90%RH
Model NVR7608Q1-8P
Camera
IP video input 8-ch
Up to 8 MP resolution
Incoming bandwidth 80 Mbps
Outgoing bandwidth 80 Mbps
HDMI output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz,
1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video output mode HDMI/VGA simultaneous output
CVBS output N/A
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding format H.265+/H.265/H.264+/H.264
Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 8-ch
Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream type Video, Video & Audio
Audio compression G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connection 64
Network protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,
ISUP, UPnP™, HTTP, HTTPS
Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 75 W
Supported standard IEEE 802.3 af/at
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 8 TB capacity for each disk
USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power supply 48 VDC, 1.88 A
Consumption
(without HDD and PoE off)
≤ 10 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight (without HDD) ≤ 1 kg (2.2 lb)
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
