Anpviz 8MP IP PoE Camera Security System, 6pcs 8MP Bullet PoE IP Cameras with SD Card Slot 4X Optical Zoom Outdoor, H.265+ 4K 8MP 8CH NVR with 2TB HDD Video Surveillance NVR System for Recording Plug&Play Hik Connect APP
*8MP Resolution Output
*Night Vision 30-40M, Motion Alert, IP66
*Built in Microphone, SD Card Slot Support 128G
NVR:
*Up to 8 Megapixels resolution
*H.265+/H.265/H.264+/H.264/MPEG4 video formats
2. 8MP H.265 Bullet POE IP Camera * 6
3. Power Adapter for NVR * 1
4. Mouse * 1
5. User Manual CD * 1
6. 20m Network Cable * 6
7. 2TB HDD * 1
Super HD 8MP 4K High Resolution of NVR
8MP 4K high resolution up to 3840x2160, much clearer than 6MP. HDMI and VGA independent outputs. It provides incredibly bright and in real color, which enables you to see all objects very clearly.
Set Motion Detection Schedule for NVR
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.
Motion Detection-Rich Alerts
When any of the cameras detect motion, the NVR7608Q1-8P could buzz to call your attention. It can also send email and push to you and trigger recording. In this way, you could be informed in real time when invasion happens.
H.265+ Compression Efectively Reduces the Storage Space by up to 75%
The H.265+ coding standard enables you to record up to 4 times longer than H.264 with the same HDD,would help you save a lot money in recording cost.
Same Time with Smart Playback
The playback feature of this NVR allows you to know the whole events. 8-channel simultaneous playback. You can quickly search for any event that happened at any time. The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours, or minutes to see the events you missed.
Super HD 8MP High Resolution of Camera
8MP high resolution, much clearer than 1080p and 720p. All cameras provide incredibly bright and in real color, which enables you to see all objects very clearly.

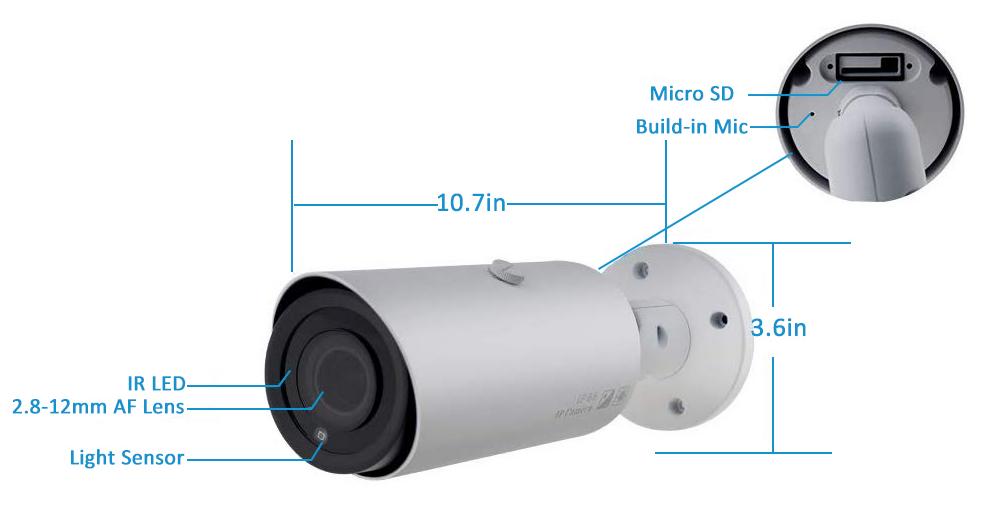

Built-in SD Card Slot
This camera max support 128G SD card (Package not include), When you insert the SD card, please make sure the camera is power off. Use SURVEILLANCE DEDICATED MICRO SD CARD for record. Formatting the SD card if the camera can`t read it. The oldest videos will be overwrited automatically when the storage is full.
One-way Audio Support
This 8MP video surveillance camera has built-in one-way Audio function. Pick up the voice around, and get a clear voice on the otherside.

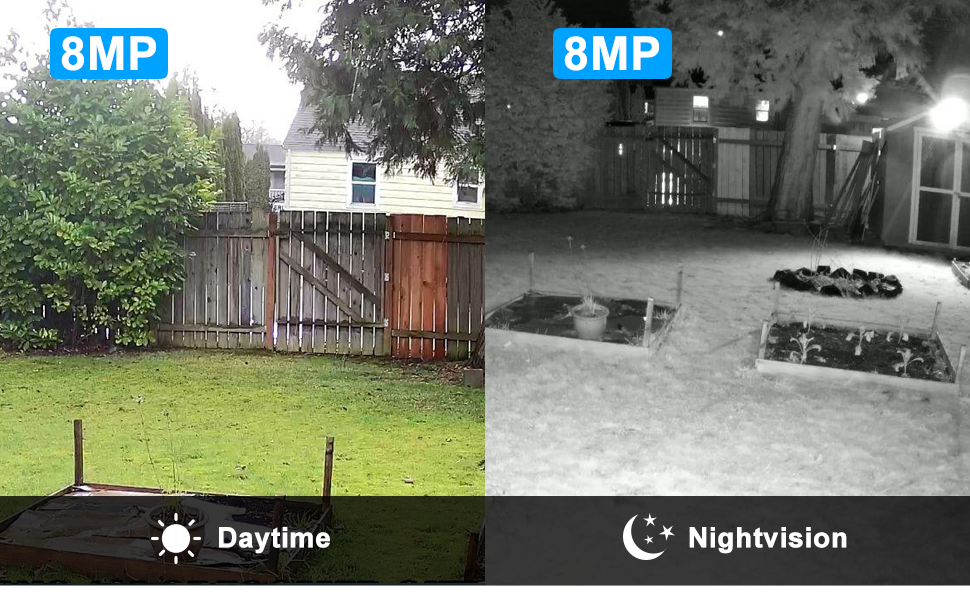

High Quality Night Vision
With improved infrared radiation for 24-hour vigilance, the 8MP cameras ensure a clear night vision, up to 98 feet long distance (depending on the environment).

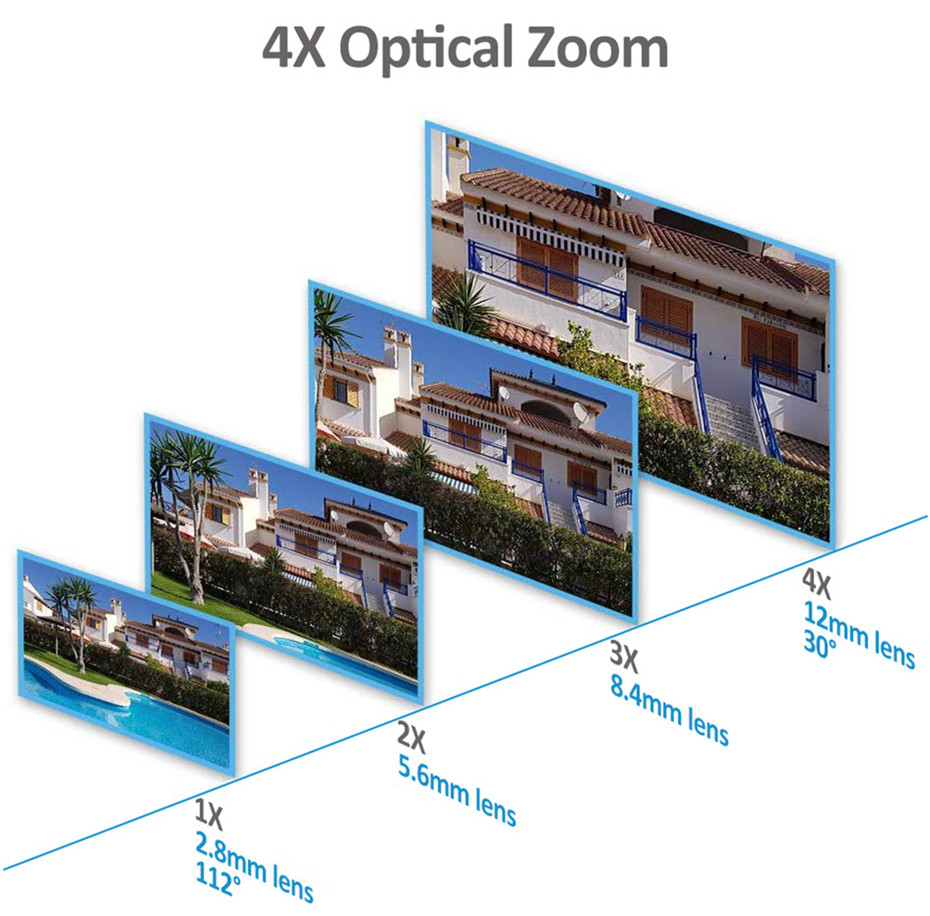

Electric Lens 4X, 2.8 ~ 12mm Zoom Lens, Easy to Adjust
Ideal for outdoor applications. It has a wide range of working temperature, can withstand extreme temperature, and can prevent dust and rain. It can be enlarged to 33 ° to let you see the details clearly, almost within reach, or it can be widened to 93 ° to let you see more and have a panoramic view.

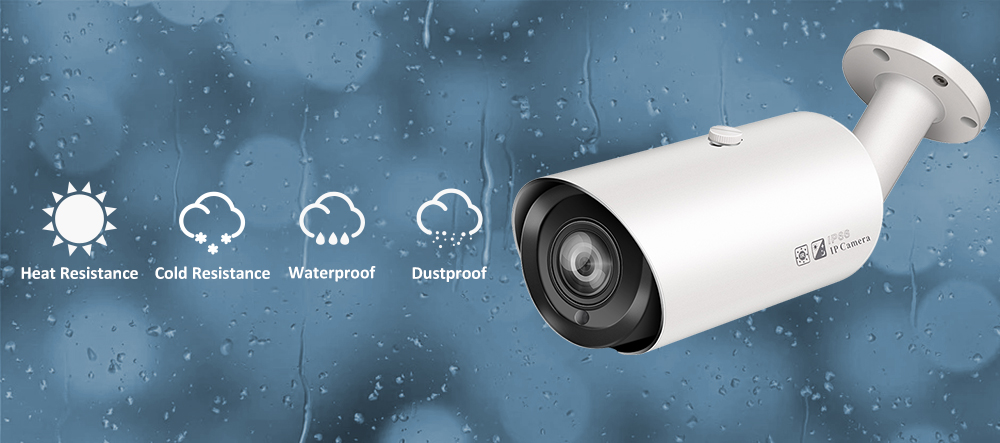

Weatherproof IP66 Indoor/ Outdoor
The aluminum alloy body and housing make the camera an IP66 weatherproof rating. This Bullet outdoor surveillance camera works perfectly outside even in harsh weather conditions.
Wide-Angle 2.8mm Lens
Smaller lenses are known as wide-angle lenses, which produce a greater field of view than cameras with a larger lens. They capture a large area, though objects will appear smaller within the camera image.
Clear Imaging even with Strong Back Lighting due to 120 dB WDR
EXIR 2.0: advanced infrared technology with long IR range,improved infrared radiation for 24-hour vigilance, the camera ensure a clear night vision, up to 98 feet long distance (depending on the environment).
DNR-Digital Noise Reduction
The camera built in Digital Noise Reduction technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess, your camera provides a cleaner, more accurate image with better clarity, sharpness, and improved motion detection, enhancing your HD experience even in the dark!
Remote Viewing, Anytime, from Anywhere
No matter where you are, you can remotely access the NVR to see live streaming and stay connected. Remotely view the NVR via: Hik-Connect, iVMS-4500 and Guarding Vision on your mobile device, iVMS-4200 Client on your computer.
Applied to Multiple Occasions
Widely used for a variety of environments, like home, meeting room, warehouses, shopping mall and so on. The IP security system is very easy to use, it is a best choice for your life.
Free Firmware Update
Free Hikvision firmware update helps your security NVR/Camera keep up with the up-to-date features as well as fixing any bugs or glitches.
Plug & Play, Hikvision Client iVMS-4200 Supported
This is original Hikvision OEM NVR, Plug & Play with Hikvision and Anpviz POE IP Cameras - Hikvision Client iVMS-4200 and Mobile APP Hik-Connect, iVMS-4500 and GuardingVision supported.
| Model | NVR7608Q1-8P |
| Camera | |
| IP video input | 8-ch |
| Up to 8 MP resolution | |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps |
| HDMI output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video output mode | HDMI/VGA simultaneous output |
| CVBS output | N/A |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding format | H.265+/H.265/H.264+/H.264 |
| Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 8-ch |
| Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
| Stream type | Video, Video & Audio |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Network | |
| Remote connection | 64 |
| Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 75 W |
| Supported standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| General | |
| Power supply | 48 VDC, 1.88 A |
| Consumption (without HDD and PoE off) |
≤ 10 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (W × D × H) | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Weight (without HDD) | ≤ 1 kg (2.2 lb) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Model | IPC-B780W-DS-4X |
| Camera | |
| Image Sensor | 1/2.8" Sony CMOS |
| Effective Pixels | 8 megapixels |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| BLC /HLC | Support |
| DNR | 2D/3D DNR |
| Other | AGC,Motion Detection,Privacy Mask,Flip,Rotate,RIO,OSD overlay |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. |
| Video Bitrates | 512Kbps - 12Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| Built-in Mic | Optional |
| OSD Overlay | Title and Time overlay ,custom color adjustable |
| IR Led | |
| IR Led | 4pcs Array IR Leds |
| IR Distance | 30-40 M |
| Lens | |
| Focal length | 2.8-12mm motorized lens |
| Optional Function | |
| PoE, Audio | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
