Anpviz 8MP 4K IP PoE Dome Security Camera Outdoor with Audio, 4K HD IP67 Waterproof H.265+ PoE Turret Camera with SD Card Slot, 102° Wide Angle Camera with 98ft Night Vision
  • Anpviz 8MP 4K IP PoE Dome Security Camera Outdoor with Audio, 4K HD IP67 Waterproof H.265+ PoE Turret Camera with SD Card Slot, 102° Wide Angle Camera with 98ft Night Vision

Anpviz 8MP 4K IP PoE Dome Security Camera Outdoor with Audio, 4K HD IP67 Waterproof H.265+ PoE Turret Camera with SD Card Slot, 102° Wide Angle Camera with 98ft Night Vision

Item No.: IPC-D383WD-S
*8MP resolution output
*Night Vision 98ft, Motion Detection Alert, IP67
*SD Card Slot Support 256GB
  • Quick start Guide IPC-D383WD-SDownload
  • UD17954B-C_Baseline_Quick Start Guide of Network Bullet Camera_20x6_20200725Download
  • User Manual Turret Dome HK Series V20210222-IPC-D383-D343Download
INQUIRY
Buy At Amazon USBuy At AliExpressBuy At Alibaba
Description Specifications Software and tools Accessories


Super HD 8MP High Resolution of Camera

8MP high resolution, much clearer than 1080p and 720p. All cameras provide incredibly bright and in real color, which enables you to see all objects very clearly.




Motion Detection

Turn on smart motion detection.When abnormal intrusion is detected,the alarm information will be pushed to mobile APP in real time,and all abnormalities are under control,not limited by distance.

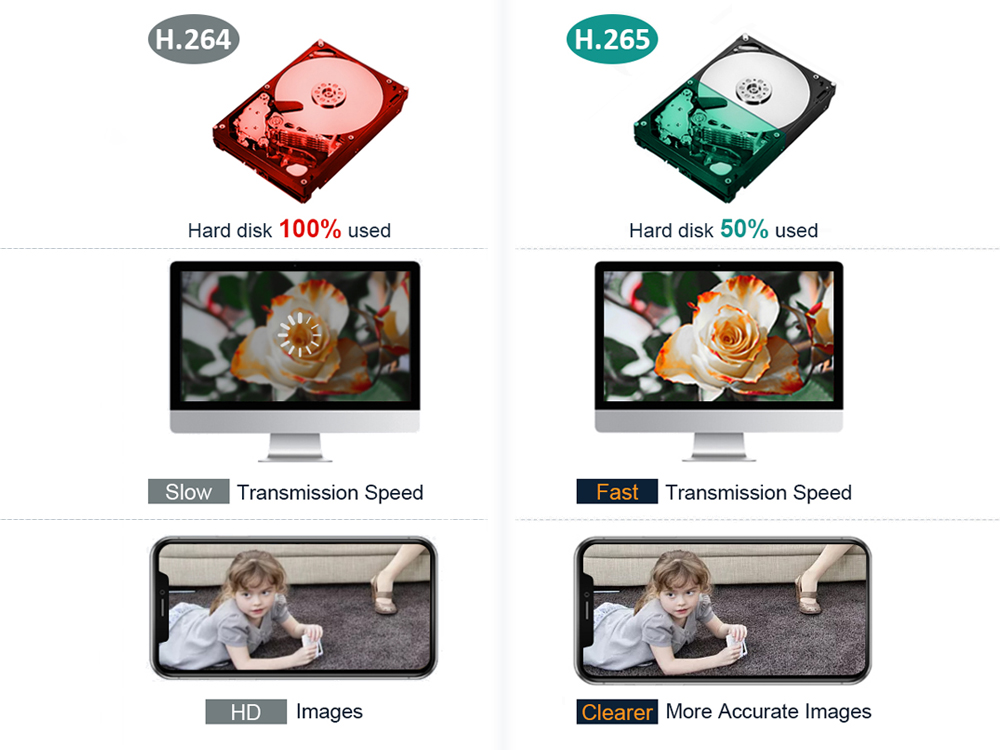

Cutting-Edge H.265 Video Compression

The H.265 coding standard enables you to record up to 4 times longer than H.264 with the same HDD.At the same bandwidth,it not only transmits clearer and smoother video,but also save more your HDD storage space and reduce your purchase cost.





POE-Power by Ethernet, Easy Setup and Connect

The camera features POE-- Power over Ethernet, with a single cable connecting each IP camera to the NVR for both power supply and video signal transmission. Easy wiring -- the wiring process can’t be simpler for beginners,built your security system easily.





Support up to 256GB SD Card Storage

This camera built in Mic SD Card Slot. Max supoort 256GB SD Card Storage.Without NVR you could also use it with no recording problem.





Built-in Microphone for Real-time Audio Security



This 4K IP camera can pick up audio around and it will give you a clear voice of what's going on at the other side.





High Quality Night Vision

With LED Lights and improved infrared radiation for 24-hour vigilance, the 8MP cameras ensure a clear night vision, up to 98ft long distance (depending on the environment).




Wider Field of View

Equipped with a 2.8mm lens, the security camera boasts a diagonal viewing angle of 108°. Compared with conventional cameras whose lens is 4mm and cover only 98°diagonal viewing angle, our camera allows you to see more corners of your house with ease.




Clear Imaging even with Strong Back Lighting due to 120 dB WDR

EXIR 2.0: advanced infrared technology with long IR range,improved infrared radiation for 24-hour vigilance, the camera ensure a clear night vision, up to 98 feet long distance (depending on the environment).




Weatherproof Metal Case,Widely Used for Home & Outdoor

Our Camera all Can Suit for Both Outdoor and Indoor Usage.IP67 weatherproof design for use in multiple scenariosoffice,street, home,factory,market,etc.Camera Working Temperature:-30°C ~ 60°C (-22 ~ 140 ).





Applied to Multiple Occasions

Widely used for a variety of environments, like home, meeting room, warehouses, shopping mall and so on. The IP security system is very easy to use, it is a best choice for your life.




Easy access via free Mobile Device APP & PC Software
When you go outside,you needn't to worry about your property security. By using thiscctv system,you can remote view live video simultaneously at anytime, anywhere with wifi/4G on smartphone/iPad/PC. With the free app "GuardingVision or HIK Connect" users can access footage via their smart device (IOS/Android) or computer (Windows) software:IVMS4200. Watch live streams and view playbacks instantly, helping you stay informed whenever, wherever.

Onvif Connectable to Third Party Recorders
An open standard protocol for Network Onvif IP Cameras to communicate easily with Network Video Recorder (NVR) devices. As all the Anpviz security camera system supports ONVIF protocol, it`s connectable to third party video recorders. In order to give full play to the functional advantages of the camera, we more recommend you to use HK recorder or Anpviz recorder!

Plug & Play, Hikvision Client iVMS-4200 Supported

This is original Hikvision OEM NVR, Plug & Play with Hikvision and Anpviz POE IP Cameras - Hikvision Client iVMS-4200 and Mobile APP Hik-Connect, iVMS-4500 and GuardingVision supported.





Remote Viewing, Anytime, from Anywhere

No matter where you are, you can remotely access the NVR to see live streaming and stay connected. Remotely view the NVR via: Hik-Connect, iVMS-4500 and GuardingVision on your mobile device, iVMS-4200 Client on your computer.




Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination 0.01 Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range WDR
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°
Lens
Lens Type & FOV 2.8 mm, horizontal FOV 102°, vertical FOV 53°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 98°
Aperture F2.0
Lens Mount M12
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 3840 × 2160
Main Stream 50Hz: 12.5 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 15 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25 fps (640 × 480, 640 × 360)
60Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265
Sub-stream: H.265/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.265 Type Main Profile
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 supports
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate 64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)/16-64Kbps(AAC)/8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP
Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Network Storage Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Privacy Mask 4 regions of privacy masks
Interface
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Basic Event Motion detection, video tampering, exception
Smart Event Face detection, line crossing detection, intrusion detection
General
Linkage Method Upload to NAS/FTP/memory card, surveillance center, send email, trigger recording, trigger capture
Firmware Version 5.5.104
Web Client Language 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password protection, password reset via email
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%
PoE: 802.3af, Type 1 Class 3
Power Consumption and Current 12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W
Power Interface Ø5.5 mm coaxial power plug
Camera Material Aluminum alloy body
Camera Dimension Ø120 × 92.2 mm (4.7" × 3.6")
Package Dimension 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Camera Weight Approx. 420 g (0.9 lb.)
With Package Weight Approx. 666 g (1.5 lb.)
Approval
EMC FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
