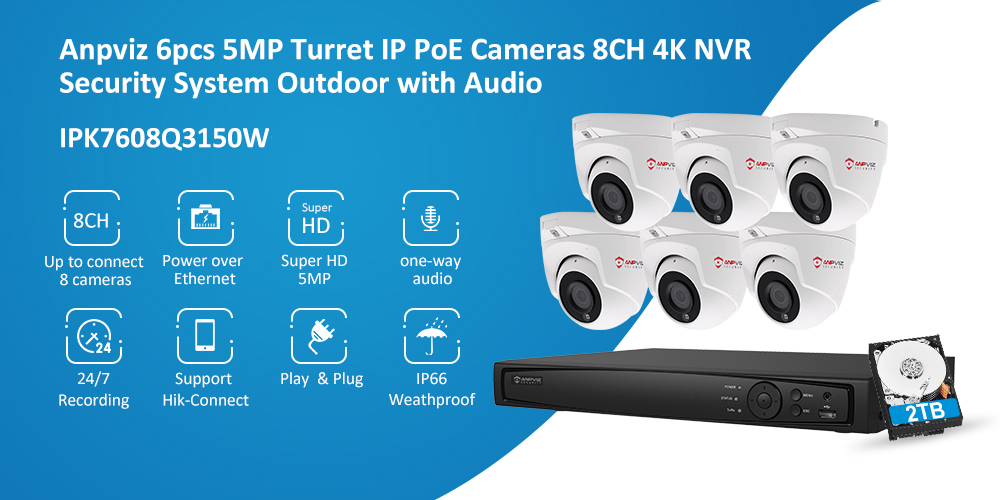

Anpviz 8CH 5MP PoE Home Security Cameras System with 2TB HDD, H.265 4K 8-Channel NVR Security System and 6pcs 5MP Outdoor Weatherproof 98ft Night Vision PoE IP Cameras with Audio for 24/7 Recording, HIK Connect APP
  • Anpviz 8CH 5MP PoE Home Security Cameras System with 2TB HDD, H.265 4K 8-Channel NVR Security System and 6pcs 5MP Outdoor Weatherproof 98ft Night Vision PoE IP Cameras with Audio for 24/7 Recording, HIK Connect APP

Anpviz 8CH 5MP PoE Home Security Cameras System with 2TB HDD, H.265 4K 8-Channel NVR Security System and 6pcs 5MP Outdoor Weatherproof 98ft Night Vision PoE IP Cameras with Audio for 24/7 Recording, HIK Connect APP

Item No.: IPK7608Q3150W-6
* 5MP resolution 2592 x 1944 output
* H.265/H.264 dual-stream media server
* Night Vision 98ft, Audio, IP66
NVR:
* Up to 8 Megapixels resolution recording
* H.265+/H.265/H.264+/H.264/MPEG4 video
INQUIRY
Description Key Features Specifications

1. 8CH 4K 8MP H.265+ POE NVR * 1
2. 5MP H.265 Turret POE IP Camera * 6
3. Power Adapter for NVR * 1
4. Mouse * 1
5. User Manual CD * 1
6. 20m Network Cable * 6
7. 2TB HDD * 1





Super HD 8MP 4K High Resolution of NVR


The NVR supports up to 8MP video input and HDMI output. You can choose a high-resolution camera and configure it to make the video picture clearer.






Set Motion Detection Schedule for NVR


The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.




Advanced H.265 Compression Technology


       The advanced H.265 compression technology is adopted to achieve ultra-low bit rate and high-definition image quality. Compared with H.264, it saves 50% bit rate, and has better support function for network transmission. It not only saves memory, but also improves image quality and transmission speed.






24/7 Reliable Recording

If you have many security cameras or if you want 24/7 reliable recording, Anpviz NVR can be your best
choice.The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.






Same Time with Smart Playback


The playback feature of this NVR allows you to know the whole events. 8-channel simultaneous playback. You can quickly search for any event that happened at any time. The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours, or minutes to see the events you missed.




Crystal Viewing in True 5MP HD

This camera provide a crystal clear 5MP Full HD picture of your home, anywhere, anytime.







IP66 Waterproof Indoor/Outdoor


This Anpviz security camera, with all metal body, can not only effectively prevent rainwater from entering the camera, prolong its working life, but also resist all bad weather conditions, so that it can work outside normally and efficiently without missing every important moment.







Smart Motion Detection

If someone enters the room illegally and enters the camera shooting range, the alarm information will be sent to the user's mobile phone. In this way, the user can know everything happened at home in time, and quickly make alarm decisions to protect family safety.








Wider Angle, Wider View


The 2.8mm lens means that the monitoring angle is larger, so that you can see a wider view of the monitoring image.






Widely Used in Many Places


This camera possesses waterproof, dust-proof, high temperature resistant, cold resistant and other multiple performance, so you can choose to use in every corner of the outdoor and indoor.






Remote View Anytime, Anywhere


This Anpviz IP camera can be connected with the mobile phone app to help users realize remote operation. Therefore, even when you go out, you can view the monitoring areas any time and know the situation in real time as long as they turn on the App(App: Danale).






Plug & Play, Hikvision Private protocol

This is original Hikvision OEM NVR, Built in Hikvision private protocol,Plug & Play with Hikvision and Anpviz POE IP Cameraswhich
built in Hikvision protocol,easy connect and setting,No more complicated pairing Settings.


























  • 【4K/8MP 8CH PoE NVR with 2TB HDD】

This 8MP 8CH NVR supports 4K Ultra HD live viewing and recording, 6 cameras can be play and plug synchronously. Powered over Ethernet, with a single cable connecting each lP camera to the NVR for both power supply and video signal transmission. It eliminates the need to install cables, simplifies installation, and lowers costs. Featuring advanced H.265 compression, which allows you to save up to 50% more storage space, and pre-install 2TB HDD for 7/24 recording.

  • 【Plug and Play, Expandable for 6 more Cameras】

This set of item includes 5MP IP PoE dome cameras, 60ft cables and 8MP PoE NVR, you can plug and play, just connect one network cable from cameras to NVR, no configuration is required.There are 2 extra ports for you to add 2  cameras.

  • 【5MP Weatherproof PoE IP Dome Camera with Audio】

5MP high resolution and equipped with 2.8mm lens, which will provide you with a super-wide 108° viewing angle and allow you to cover more areas and get clearer details. IR range up to 98ft, help you capture clear pictures even in low-light condition;High quality aluminium alloy housing enables the camera to withstand rain, snow, wind, and temperatures ranging from -22°F--140°F. And with microphone, you can listen what happen outsides.

  • 【Remote Access from Multi-platform, HIK Connect APP】

Viewing remotely and being aware of what’s going on in your family and office via a free APP, Hik-Connect or Guarding Vision. And you can also remote access from your iPad or PC. These IP cameras support customized motion detection that will keep you aware of what is occurring, you can live view instantly, receive email alerts and push notifications directly to your mobile device via a free mobile APP.

  • 【Warranty and Professional Technical Support】

30-day money-back guarantee and 1-year warranty which includes free parts replacement and lifetime technical support. Anpviz Teams provide free lifetime tech support, E-mail, telephone or video support all could be provided.
Model IPC-3150W-S
Camera
Image Sensor 1/3" CMOS
Effective Pixels 5 megapixels
Electronic Shutter AUTO
Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Manual
BLC Support
DNR 2D/3D DNR
Other Multi-lines OSD, Motion Detection, Privacy Mask, Mirror
Encode
Video Standard H.264/H.265
Video Resolution Main Stream:
25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P
Sub stream: 25fps@D1/VGA/360P/CIF, etc.
Video Bitrates 32Kbps - 8Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a
Built-in Mic Yes
OSD Overlay Title and Time overlay
IR Led
IR Led 18 pcs SMD IR Leds
IR Distance 25-30M
Lens
Focal length 2.8 mm fixed lens
Optional Function
POE, Audio, etc.
Network Services
Protocol HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P Yes
Web IE , Firefox 32bit ESR, etc.
Media CMS, Android, IOS
ONVIF 17.06 compatible
General
Network Port 1-RJ45, 100Mbps, POE optional
Power Supply 12 VDC ± 10%
Power Consumption < 5 W
Operating Temp. -30℃-(+60)℃, 10%-90%RH

Model NVR7608Q1-8P
Camera
IP video input 8-ch
  Up to 8 MP resolution
Incoming bandwidth 80 Mbps
Outgoing bandwidth 80 Mbps
HDMI output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz,
1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video output mode HDMI/VGA simultaneous output
CVBS output N/A
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding format H.265+/H.265/H.264+/H.264
Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 8-ch
Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream type Video, Video & Audio
Audio compression G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connection 64
Network protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,
ISUP, UPnP™, HTTP, HTTPS
Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 75 W
Supported standard IEEE 802.3 af/at
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 8 TB capacity for each disk
USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power supply 48 VDC, 1.88 A
Consumption
(without HDD and PoE off)
≤ 10 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight (without HDD) ≤ 1 kg (2.2 lb)
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
