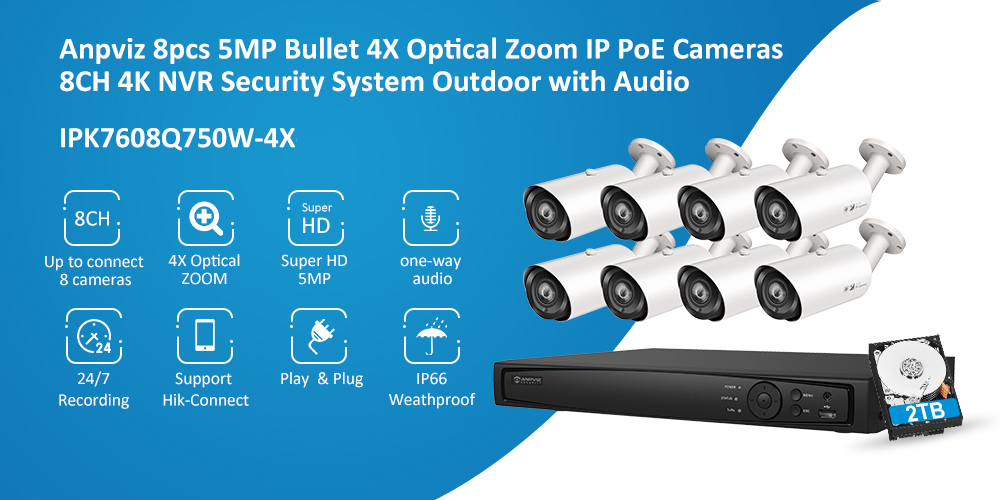

【4X Optical Zoom】Anpviz 5MP IP POE Security Camera System, 8CH H.265 NVR with 2TB HDD and 8 pcs 5MP 4X Optical 2.8~12mm Vari-Focal Outdoor IP POE Bullet Cameras Home Security System with Audio Recording, Waterproof, 98ft Night Vision, HIK Connect APP
* Electric lens 4x2.8 ~ 12mm zoom lens, easy to adjust
* H.265/H.264 dual-stream media server
* Night Vision 98ft, Audio, IP66
NVR:
* Up to 8 Megapixels resolution recording
* H.265+/H.265/H.264+/H.264/MPEG4 video
1. 8CH 4K 8MP H.265+ POE NVR * 1
2. 5MP H.265 Turret POE IP Camera * 8
3. Power Adapter for NVR * 1
4. Mouse * 1
5. User Manual CD * 1
6. 20m Network Cable * 8
7. 2TB HDD * 1
Super HD 8MP 4K High Resolution of NVR
Set Motion Detection Schedule for NVR
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.
Advanced H.265 Compression Technology
The advanced H.265 compression technology is adopted to achieve ultra-low bit rate and high-definition image quality. Compared with H.264, it saves 30% bit rate, and has better support function for network transmission. It not only saves memory, but also improves image quality and transmission speed.
Same Time with Smart Playback
The playback feature of this NVR allows you to know the whole events. 8-channel simultaneous playback. You can quickly search for any event that happened at any time. The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours, or minutes to see the events you missed.
Electric lens 4x2.8 ~ 12mm zoom lens, easy to adjust
Ideal for outdoor applications. It has a wide range of working temperature, can withstand extreme temperature, and can prevent dust and rain. It can be enlarged to 33 ° to let you see the details clearly, almost within reach, or it can be widened to 93 ° to let you see more and have a panoramic view.
Crystal Viewing in True 5MP HD
This camera provide a crystal clear 5MP Full HD picture of your home, anywhere, anytime.
IP66 Waterproof Indoor/Outdoor
This Anpviz security camera, with all metal body, can not only effectively prevent rainwater from entering the camera, prolong its working life, but also resist all bad weather conditions, so that it can work outside normally and efficiently without missing every important moment.
Smart Motion Detection
If someone enters the room illegally and enters the camera shooting range, the alarm information will be sent to the user's mobile phone. In this way, the user can know everything happened at home in time, and quickly make alarm decisions to protect family safety.
Wider Angle, Wider View
The 2.8mm lens means that the monitoring angle is larger, so that you can see a wider view of the monitoring image.
Widely Used in Many Places
This camera possesses waterproof, dust-proof, high temperature resistant, cold resistant and other multiple performance, so you can choose to use in every corner of the outdoor and indoor.
This is original Hikvision OEM NVR, Built in Hikvision private protocol,Plug & Play with Hikvision and Anpviz POE IP Cameraswhich
built in Hikvision protocol,easy connect and setting,No more complicated pairing Settings.
- 【4K/8MP 16CH PoE NVR with 4TB HDD】
This 8MP 16CH NVR supports 4K Ultra HD live viewing and recording, 10 cameras can be play and plug synchronously. Powered over Ethernet, with a single cable connecting each lP camera to the NVR for both power supply and video signal transmission. It eliminates the need to install cables, simplifies installation, and lowers costs. Featuring advanced H.265 compression, which allows you to save up to 50% more storage space, and pre-install 4TB HDD for 7/24 recording.
- 【Plug and Play, Expandable for 10 More Cameras】
This set of item includes 5MP IP PoE dome cameras, 60ft cables and 8MP PoE NVR, you can plug and play, just connect one network cable from cameras to NVR, no configuration is required.There are 4 extra ports for you to add 4 more cameras.
- 【5MP Weatherproof PoE IP Dome Camera with Audio】
5MP high resolution and equipped with 2.8mm lens, which will provide you with a super-wide 108° viewing angle and allow you to cover more areas and get clearer details. IR range up to 98ft, help you capture clear pictures even in low-light condition;High quality aluminium alloy housing enables the camera to withstand rain, snow, wind, and temperatures ranging from -22°F--140°F. And with microphone, you can listen what happen outsides.
- 【Remote Access from Multi-platform, HIK Connect APP】
Viewing remotely and being aware of what’s going on in your family and office via a free APP, Hik-Connect or Guarding Vision. And you can also remote access from your iPad or PC. These IP cameras support customized motion detection that will keep you aware of what is occurring, you can live view instantly, receive email alerts and push notifications directly to your mobile device via a free mobile APP.
- 【Warranty and Professional Technical Support】
30-day money-back guarantee and 1-year warranty which includes free parts replacement and lifetime technical support. Anpviz Teams provide free lifetime tech support, E-mail, telephone or video support all could be provided.
| Model | IPC-750W-4X |
| Camera | |
| Image Sensor | 1/2.8" Sony CMOS |
| Effective Pixels | 5 megapixels |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| BLC /HLC | Support |
| DNR | 2D/3D DNR |
| Other | AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: 15fps@5MP(2592x1944),25fps@4MP/3MP,30fps@1080P/720P Sub Stream: D1/VGA(640x480)/360P/QVGA@30fps |
| Video Bitrates | 32Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| Built-in Mic | Optional |
| OSD Overlay | Title and Time overlay |
| IR Led | |
| IR Led | 4 pcs array IR Led |
| IR Distance | 30-40M |
| Lens | |
| Focal length | 2.8-12 mm motorized lens |
| Optional Function | |
| PoE | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
| Model | NVR7608Q1-8P |
| Camera | |
| IP video input | 8-ch |
| Up to 8 MP resolution | |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 160 Mbps |
| HDMI output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video output mode | HDMI/VGA simultaneous output |
| CVBS output | N/A |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding format | H.265+/H.265/H.264+/H.264 |
| Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 8-ch |
| Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
| Stream type | Video, Video & Audio |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Network | |
| Remote connection | 64 |
| Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 75 W |
| Supported standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| General | |
| Power supply | 48 VDC, 1.88 A |
| Consumption (without HDD and PoE off) |
≤ 10 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (W × D × H) | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Weight (without HDD) | ≤ 1 kg (2.2 lb) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
